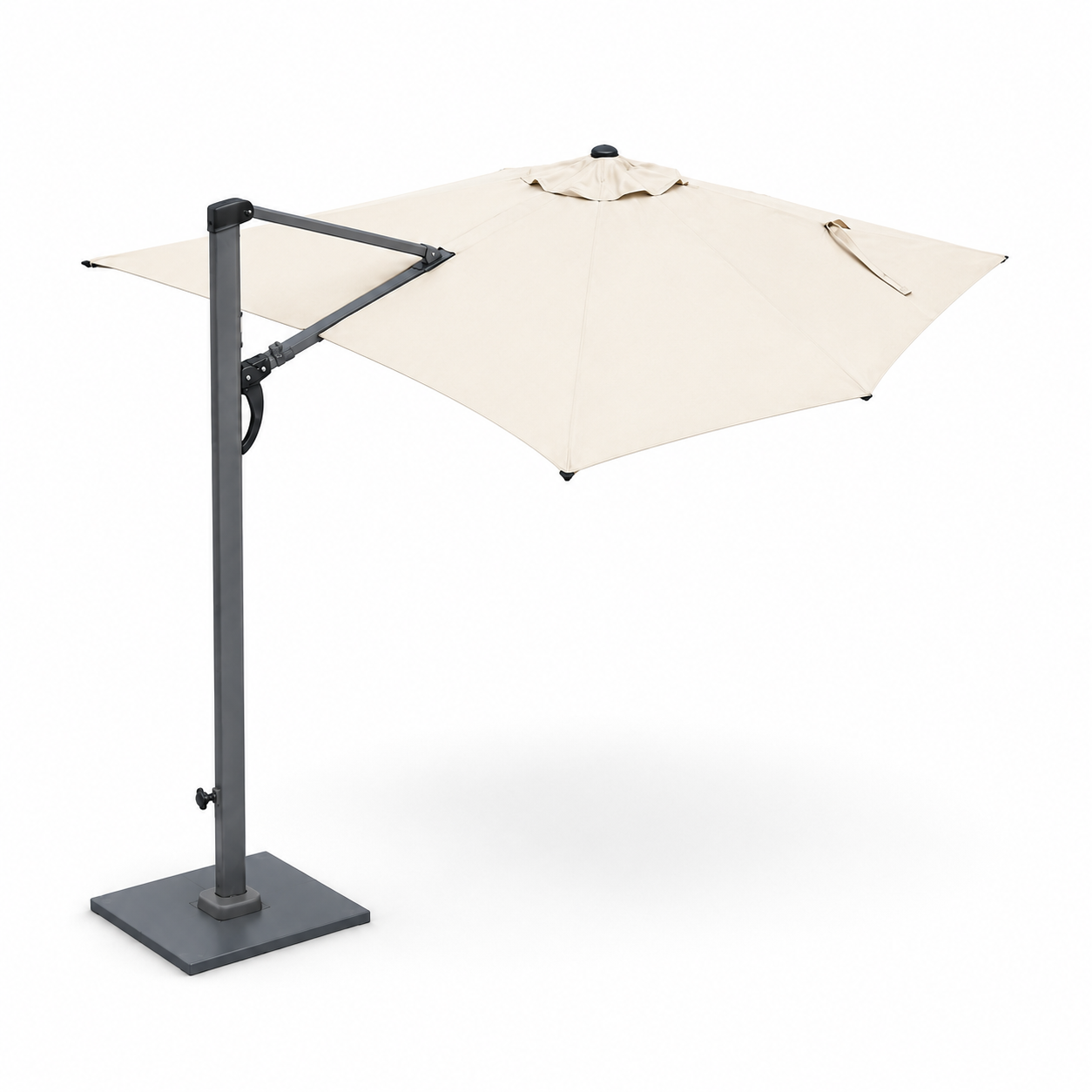

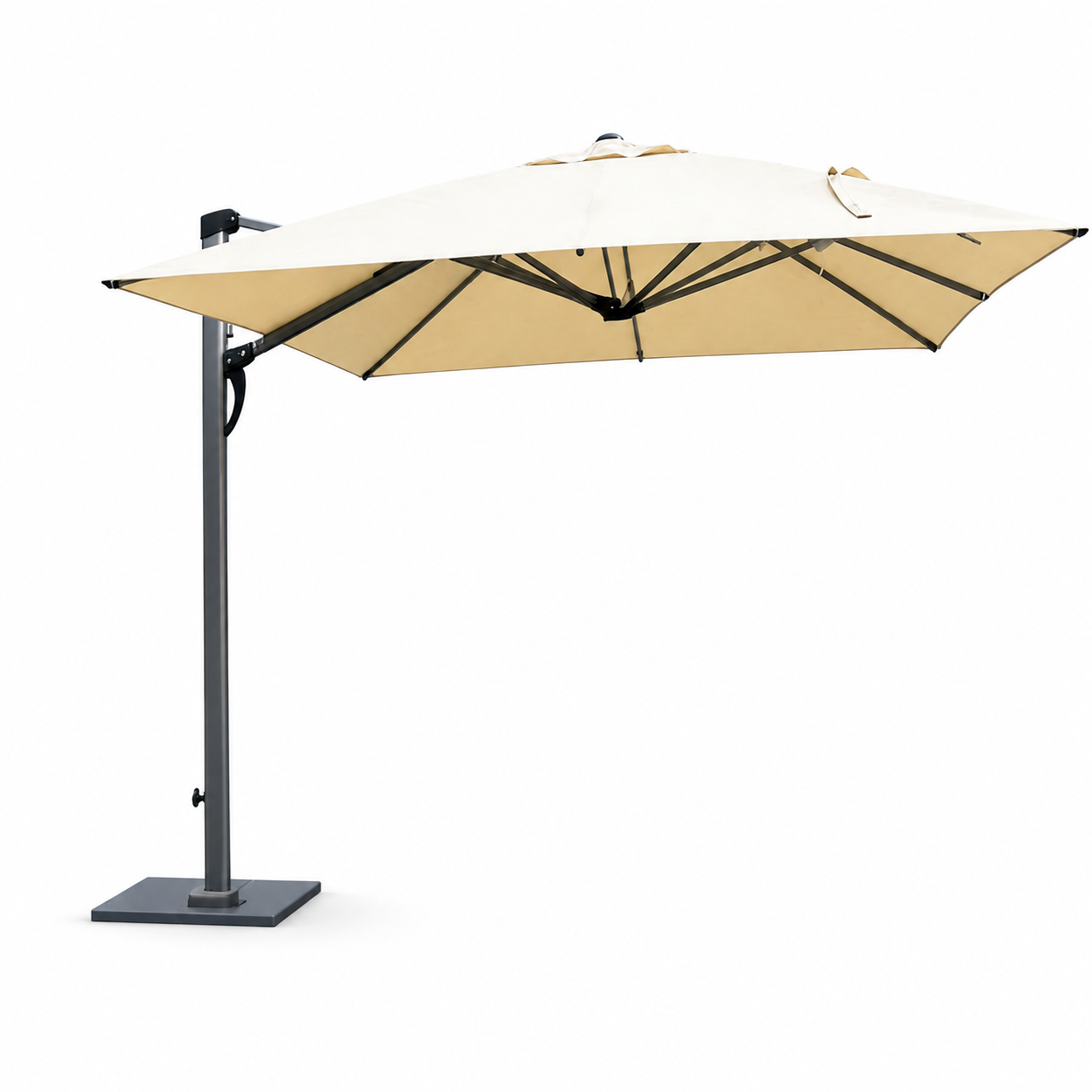

The ZL01P-90 Wind-Resistant Cantilever Patio Umbrella is designed for outdoor applications where structural strength, large-area shade and long-term usability are important. As the dedicated wind-resistant model in the product range, it features a reinforced all-aluminum structural system instead of the aluminum-and-iron combination used in entry-level models.

The standard umbrella provides a 3 × 3 meter canopy area, making it suitable for outdoor dining tables, lounge furniture, commercial seating areas, hotel terraces, residential patios and other open-air environments. The cantilever structure places the main pole to the side of the shaded area, leaving the space beneath the canopy more open for furniture and customer movement.

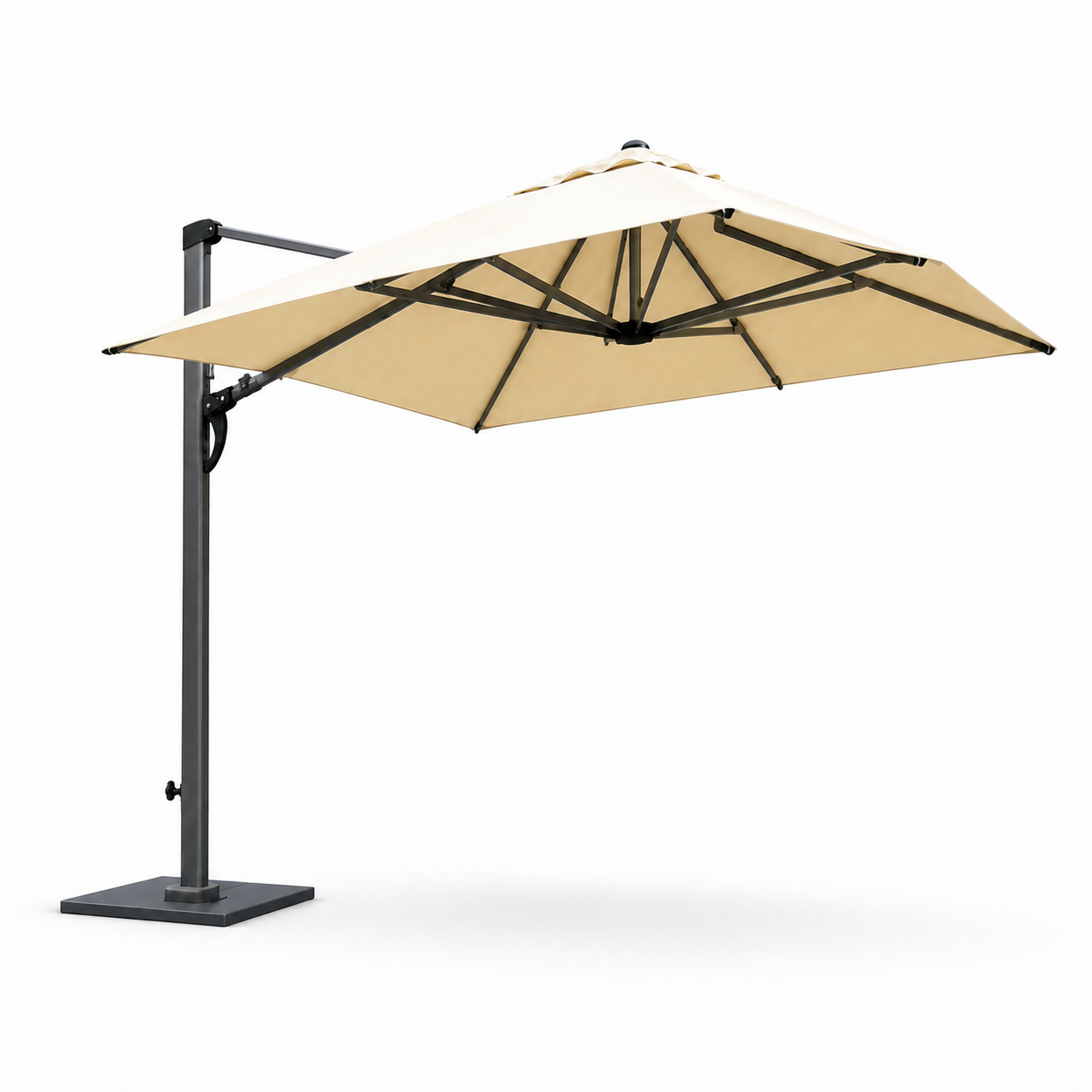

Structurally, the ZL01P-90 uses a 90 × 53 × 1.8 mm aluminum main pole, 20 × 40 × 1.5 mm aluminum support rod, 30 × 40 × 2.0 mm aluminum main ribs, and additional 14 × 24 × 1.0 mm specially shaped aluminum ribs. This reinforced configuration distinguishes it clearly from conventional lightweight patio umbrellas.

The canopy uses 250g yarn-dyed fabric with a waterproof coating. According to the supplied catalog, the fabric is specified as meeting European Grade 6 or U.S. Grade 4 standards. The aluminum components use an oxidation surface treatment, giving the frame a clean and refined appearance suitable for both residential and commercial outdoor environments.

The standard ZL01P-90 does not include solar power or electronic functions. However, the catalog states that solar power and a center light can be added as optional equipment, allowing distributors and project buyers to configure the product according to different market requirements.

Product Advantages

1. Reinforced Wind-Resistant Structure

The most important positioning of the ZL01P-90 is its reinforced construction.

The main pole measures 90 × 53 × 1.8 mm, while the primary ribs reach 30 × 40 × 2.0 mm. Additional specially shaped 14 × 24 × 1.0 mm aluminum ribs further distinguish the structure from standard patio umbrella models.

This makes the ZL01P-90 particularly suitable for customers looking for a more substantial outdoor umbrella for frequently used patios, terraces and commercial spaces.

Current patio-umbrella markets also commonly position reinforced cantilever structures and vented canopy designs around wind-resistant outdoor use, especially for large square umbrellas.

The supplied product catalog does not provide a certified maximum wind-speed rating, so no specific wind-speed claim should be added to the website unless independent test data becomes available.

2. All-Aluminum Main Structure

Unlike entry-level models with iron ribs, the ZL01P-90 uses aluminum for its main structural components.

The configuration includes:

• Aluminum main pole
• Aluminum support rods
• Aluminum main umbrella ribs
• Aluminum specially shaped reinforcement ribs

This all-aluminum configuration supports the product's higher-positioned commercial and outdoor-furniture image.

For distributors offering multiple umbrella levels, the ZL01P-90 can therefore be positioned above basic aluminum-and-iron models and marketed toward customers who place greater emphasis on structural specification and material selection.

3. Large 3 × 3 Meter Shade Coverage

The standard ZL01P-90 canopy size is 3 × 3 meters, approximately equivalent to the popular 10 ft square patio-umbrella category used in international markets.

Large square cantilever umbrellas are commonly marketed for outdoor dining sets, lounge chairs and poolside applications because they provide broad usable coverage.

The product catalog also allows different canopy dimensions, including:

• 2.5 × 2.5 m
• 3 × 3 m
• 3 × 4 m
• Other customized dimensions upon consultation

This makes the ZL01P-90 suitable for importers and project buyers working with different patio layouts.

4. Cantilever Design for Open Space Beneath the Canopy

The side-pole design keeps the main support column away from the center of the shaded area.

This is especially useful for:

• Restaurant dining tables
• Outdoor sofa groups
• Hotel lounge furniture
• Poolside loungers
• Commercial reception areas
• Garden seating arrangements

Compared with a traditional center-pole umbrella, the cantilever configuration provides more flexibility when arranging outdoor furniture.

This functional layout is one of the reasons cantilever umbrellas are widely marketed for patios, commercial outdoor areas and poolside environments.

5. 250g Waterproof Yarn-Dyed Canopy Fabric

The ZL01P-90 uses 250g yarn-dyed fabric with a waterproof coating.

The catalog lists several common canopy colors:

• Sky Blue
• Dark Green
• Burgundy
• Off-White
• Khaki

Other color configurations can also be produced according to customer requirements, although special colors may require a minimum order quantity and additional processing costs.

This customization flexibility is particularly useful for:

• Hotel projects
• Restaurant chains
• Outdoor furniture brands
• Private-label distributors
• Landscape projects
• Commercial developments

6. Oxidized Aluminum Finish

The aluminum components use an oxidation surface treatment.

This gives the frame a clean metallic appearance and helps position the umbrella as a refined outdoor product suitable for modern architectural and hospitality settings.

The catalog indicates oxidized white as a common metal appearance, while alternative colors can be discussed separately depending on order quantity and processing requirements.

7. Optional Solar Power and Center Lighting

The ZL01P-90 is primarily designed as a structural wind-resistant umbrella, so solar power and electronic systems are not included as standard.

However, buyers can request:

• Optional solar power
• Optional center lighting

This gives importers the flexibility to create different configurations from one umbrella platform.

For example, a distributor may offer the standard version as a heavy-duty commercial shade product while also developing an upgraded version with solar-powered lighting for hospitality or premium residential customers.

8. Flexible Customization for B2B Buyers

The ZL01P-90 is suitable for B2B customers who need more than a fixed retail specification.

Canopy size and color can be customized according to order requirements. This makes the product particularly relevant to:

• Patio furniture wholesalers
• Outdoor furniture importers
• Hotel supply companies
• Restaurant equipment suppliers
• Garden furniture distributors
• Landscape contractors
• Private-label outdoor brands
• Commercial project developers

Product Specifications

Product Application Scenarios

Restaurants and Outdoor Cafés

The ZL01P-90 is well suited to restaurant terraces and outdoor café areas.

Its large square canopy provides shade above tables and chairs, while the offset support pole keeps the dining area relatively unobstructed.

For commercial hospitality customers, this combination provides both practical shade and a cleaner furniture layout.

Hotels and Resorts

Hotels and resorts can use the ZL01P-90 in:

• Outdoor restaurants
• Hotel gardens
• Poolside areas
• Guest terraces
• Entrance areas
• Leisure zones

The all-aluminum structure and large cantilever canopy make it suitable for hospitality environments where both appearance and structural specification matter.

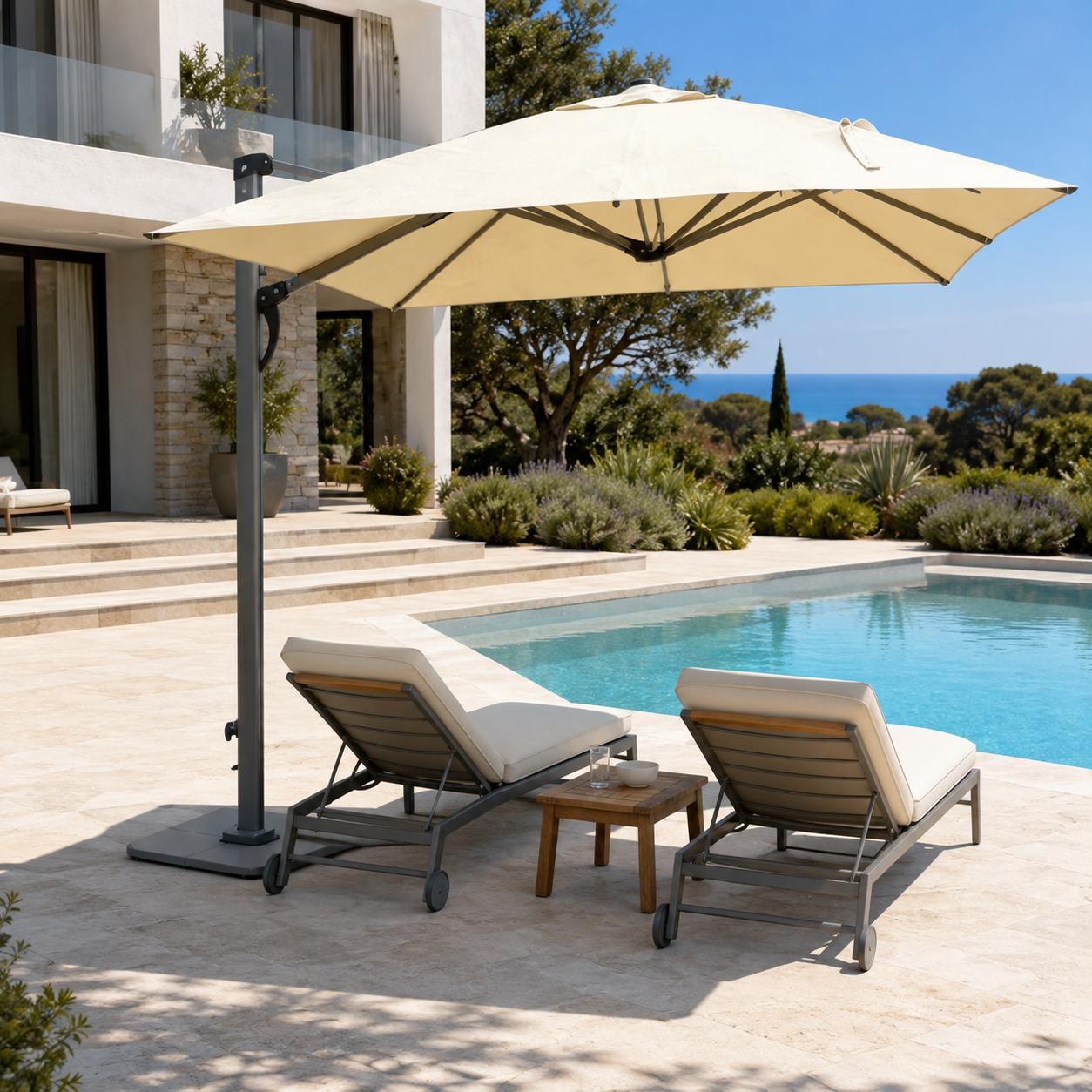

Poolside Areas

The side-post configuration is especially practical beside swimming pools.

The base and main pole can remain outside the primary lounge area while the canopy extends over sun loungers.

This allows guests to enjoy shade without placing a central umbrella pole between chairs.

Large cantilever umbrellas are currently widely positioned for patio and poolside shade in the international market.

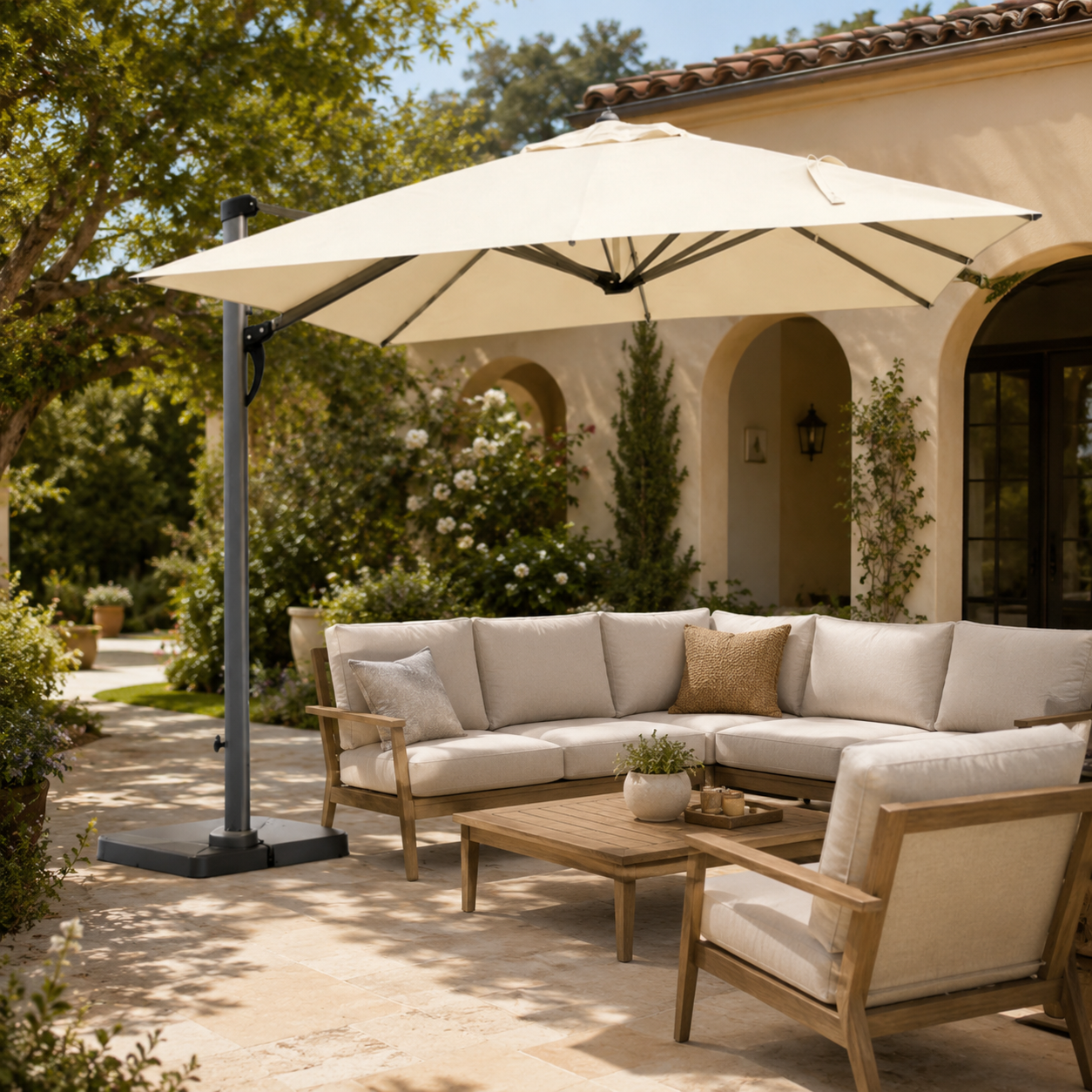

Private Villas and Residential Gardens

The ZL01P-90 can also be used in premium residential environments such as:

• Villa gardens
• Backyard patios
• Large balconies
• Outdoor dining areas
• Garden lounge spaces

Its 3 × 3 m canopy works effectively with outdoor sofas, dining tables and lounge furniture.

Commercial Courtyards and Outdoor Plazas

Office buildings, shopping centers, clubs, commercial developments and public outdoor spaces can also use the ZL01P-90 to create shaded seating areas.

For larger projects, multiple umbrellas can be combined across the site, while customized sizes and colors can be discussed according to the project design.

Why Choose the ZL01P-90?

The ZL01P-90 Heavy-Duty Wind-Resistant Cantilever Patio Umbrella is designed for buyers who want a stronger structural specification than a basic outdoor umbrella.

Its key configuration includes a 90 × 53 × 1.8 mm aluminum main pole, 20 × 40 × 1.5 mm aluminum support rods, 30 × 40 × 2.0 mm aluminum ribs, additional 14 × 24 × 1.0 mm special-shaped aluminum ribs and a 250g waterproof yarn-dyed canopy.

The standard 3 × 3 m canopy, all-aluminum main structure, oxidized finish and cantilever layout make it suitable for both commercial and residential outdoor applications.

For importers, wholesalers, hotel suppliers, restaurant equipment distributors and outdoor furniture brands, the ZL01P-90 offers a combination of reinforced construction, spacious shade coverage, flexible customization and optional solar or lighting upgrades.

Whether installed in a restaurant terrace, hotel garden, resort poolside area, private villa, outdoor café or commercial courtyard, the ZL01P-90 provides a practical and professionally positioned shade solution for international B2B markets.
