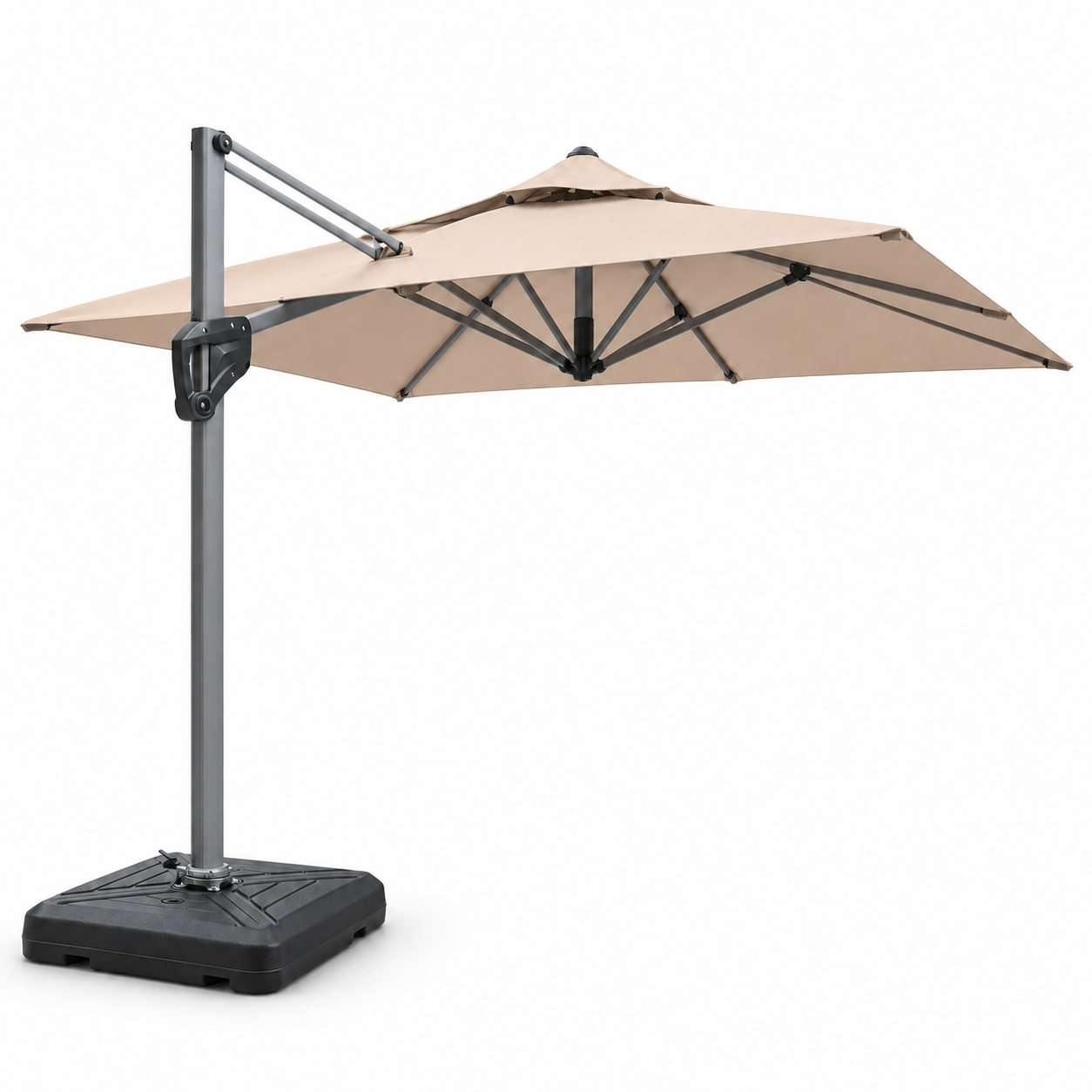

2.75×2.75M B-Type Wind-Resistant Cantilever Patio Umbrella with Dual Rods, Multi-Angle Tilt & 360° Rotation
Patented Dual-Rod Engineering for Wider, More Flexible Shade
A 2.75 × 2.75 m cantilever umbrella with a U.S.-patented dual-rod system, rack-style multi-angle positioning, 360° rotation and service-friendly modular construction. Rechargeable LED lighting and solar power are available as optional configurations.
Patented Dual-Rod Cantilever Umbrella for Flexible Outdoor Shade

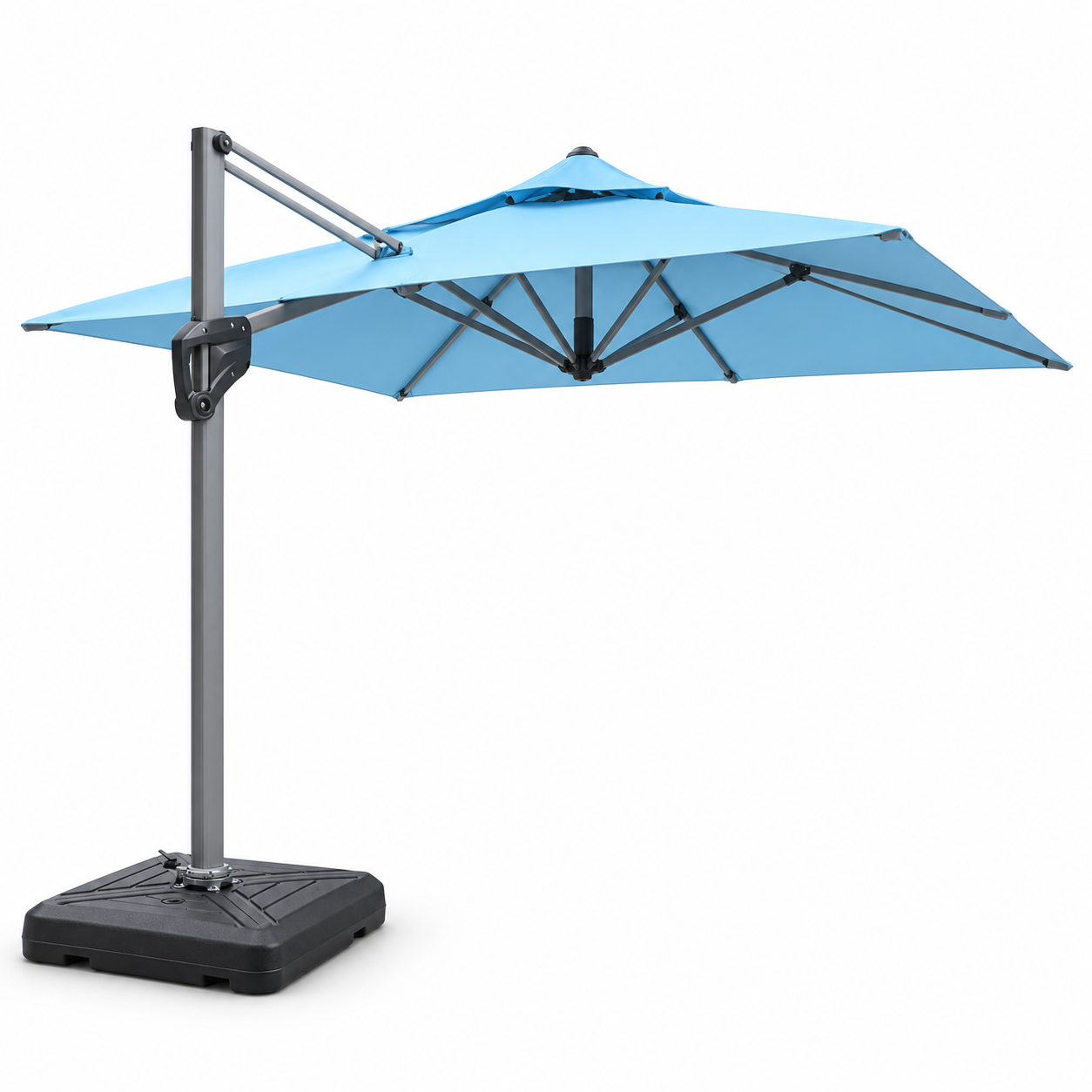

This 2.75 × 2.75 m B-Type cantilever patio umbrella combines structural stability, flexible shade positioning and practical serviceability for cafés, restaurant patios, villas, resorts, poolside areas and other commercial or residential outdoor spaces. The standard frame uses an off-white textured finish with a 170 g/m² PU300 polyester canopy. Light coffee and light blue canopy options are shown in the product gallery.
Patented Product Highlights

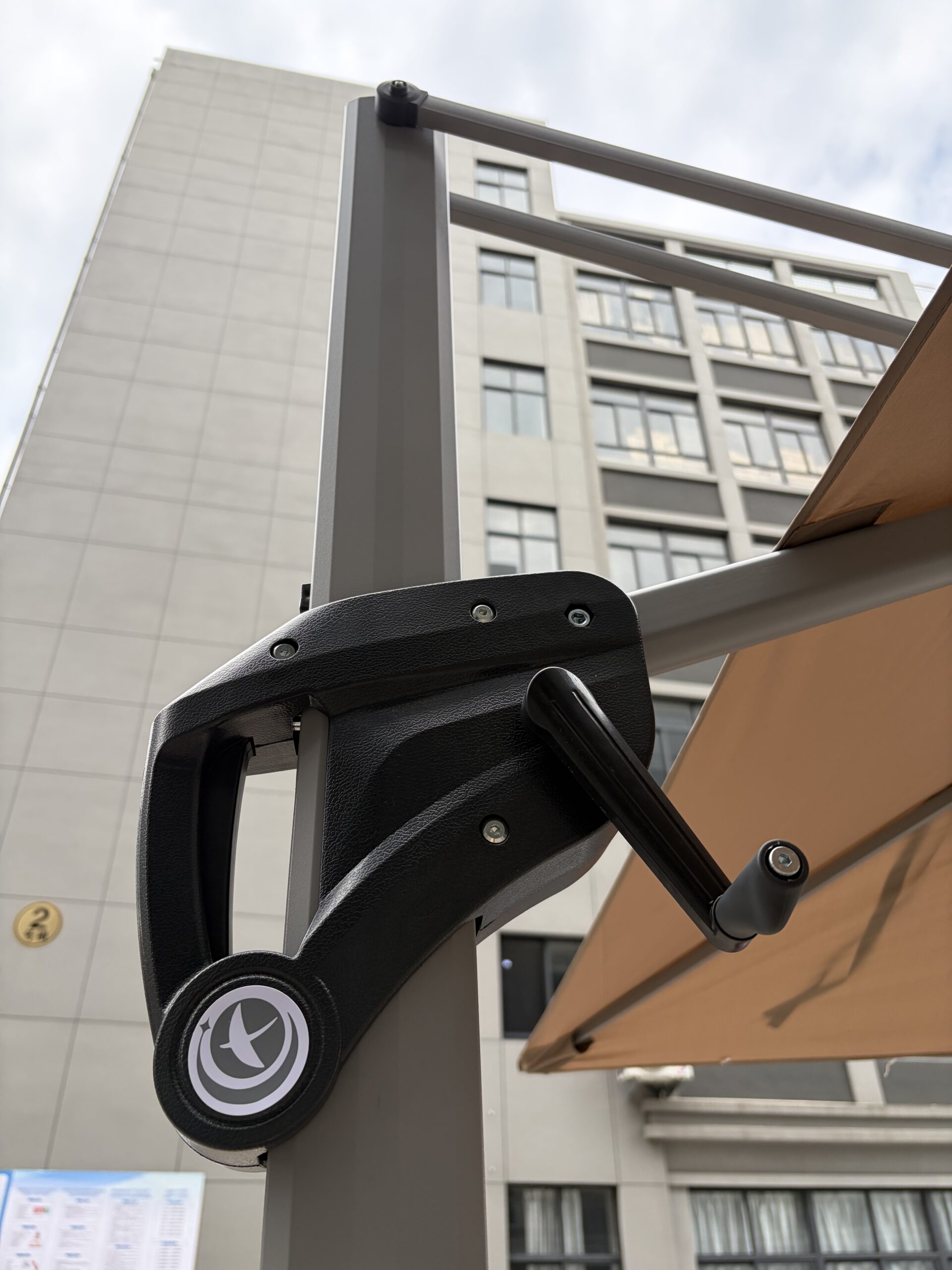

- U.S.-patented dual-rod system: Two parallel pull rods reinforce the cantilever support structure for improved wind resistance and more stable operation.

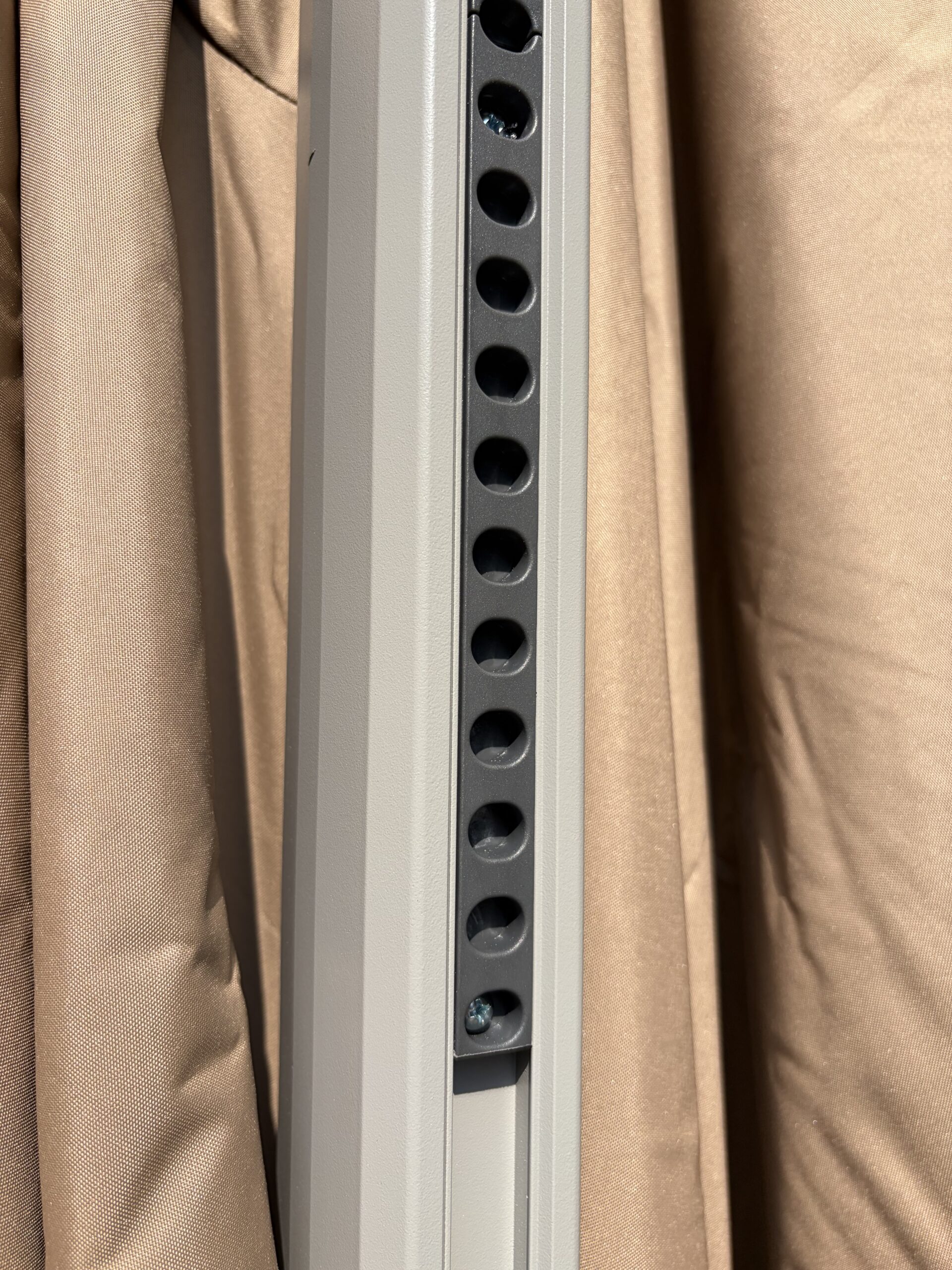

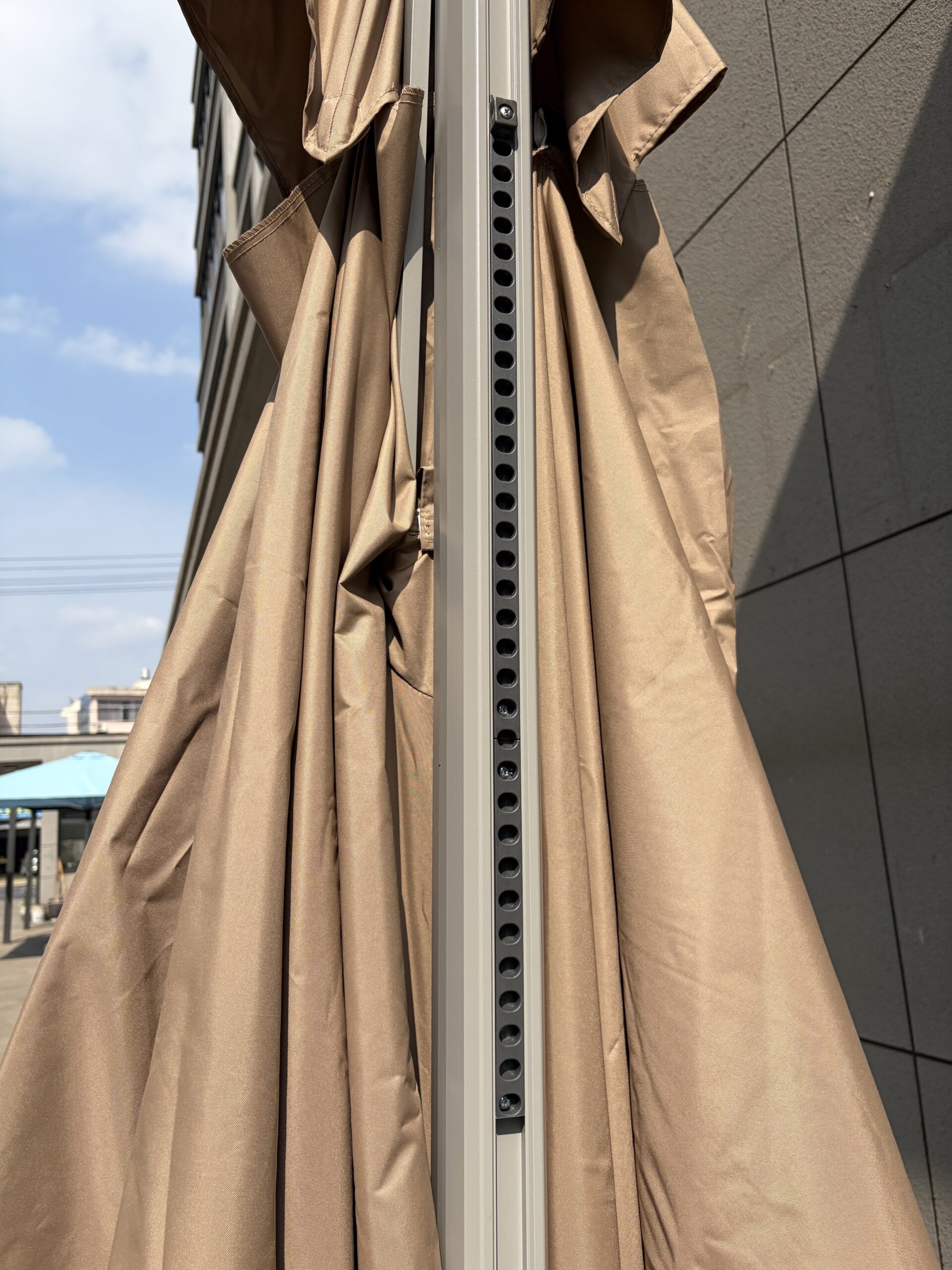

- Rack-style multi-position arm system: The armrest positioning rack provides multiple locking points, allowing the canopy angle and position to be adjusted as the sun moves and helping enlarge the usable shaded area.

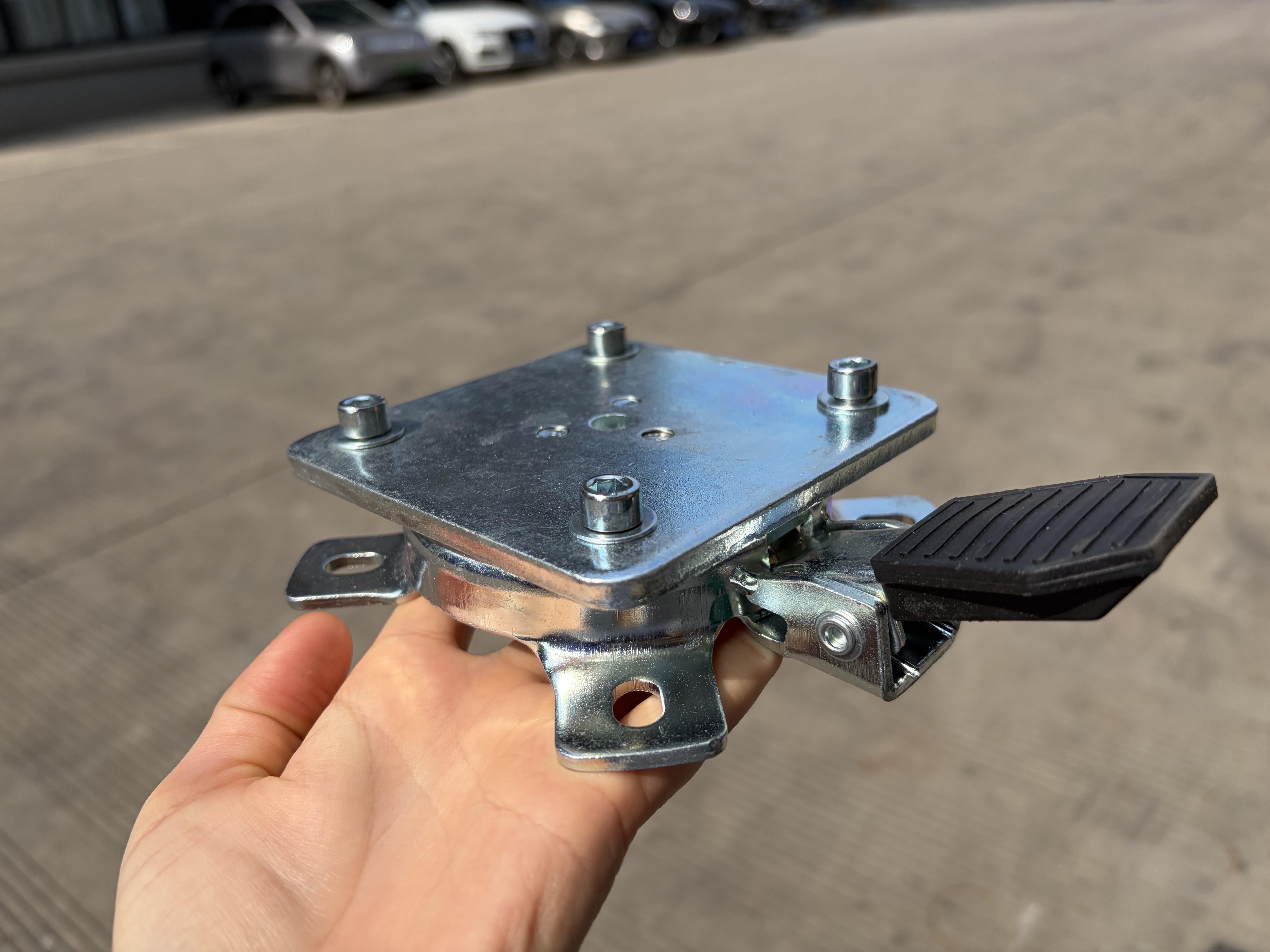

- 360° rotating structure: A compact steel rotating base assembly allows the umbrella to turn through 360 degrees, so the shade direction can be changed without moving the entire base.

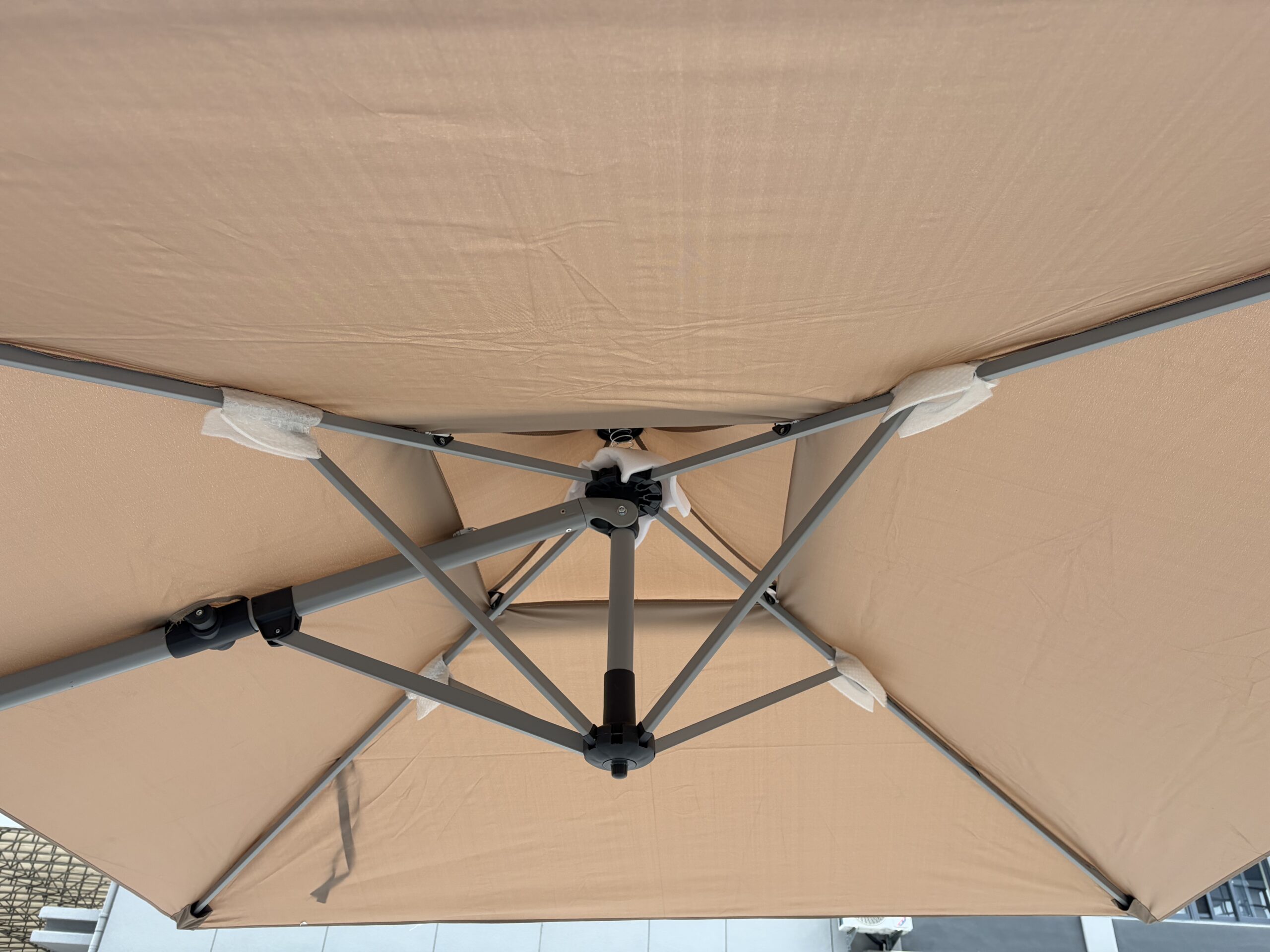

- Modular, service-friendly construction: The umbrella body is designed for easy disassembly. Individual ribs and connected components can be replaced separately, simplifying maintenance and extending service life.
- Portable rechargeable LED center light: An optional center light provides warm-white illumination with two adjustable brightness levels for comfortable evening use.
- Optional solar configuration: Solar power can be added to support longer-lasting night lighting without relying on a nearby power outlet.
Product Detail Images

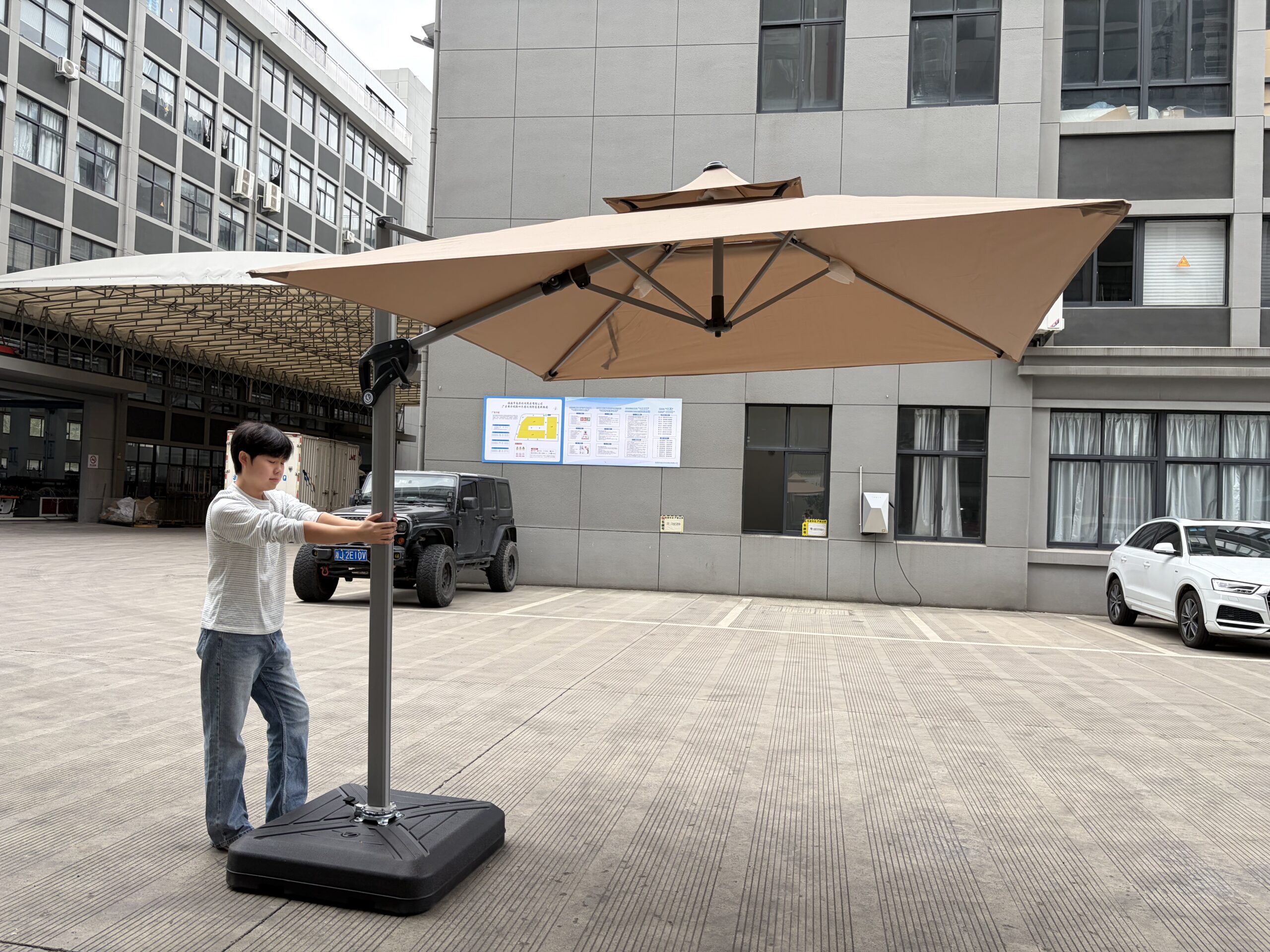

Close-up views of the complete umbrella and its key adjustment mechanisms.
Product Specifications
| Canopy size | 2.75 × 2.75 m |
|---|---|
| Aluminum mast | 80 × 54 × 1.3 mm |
| Dual steel pull rods | 14 × 24 × 0.5 mm |
| Steel support bar | 40 × 20 × 0.7 mm |
| Steel ribs | 13 × 22 × 0.45 mm |
| Frame finish | Off-white textured coating |
| Canopy fabric | 170 g/m² PU300 polyester; standard reference color: light coffee |
| Base interface | Foot tube with compact steel 360° rotating assembly |
| Gross / net weight | 16.60 / 14.63 kg |
| Component weights | Foot tube: 0.70 kg; compact rotating assembly: 1.41 kg; umbrella frame: 12.52 kg |
| Carton size | 264 × 40 × 17 cm |
Rechargeable LED lighting and solar power are optional configurations. Final specifications can be adapted for project and OEM/ODM requirements.
